Product Name :

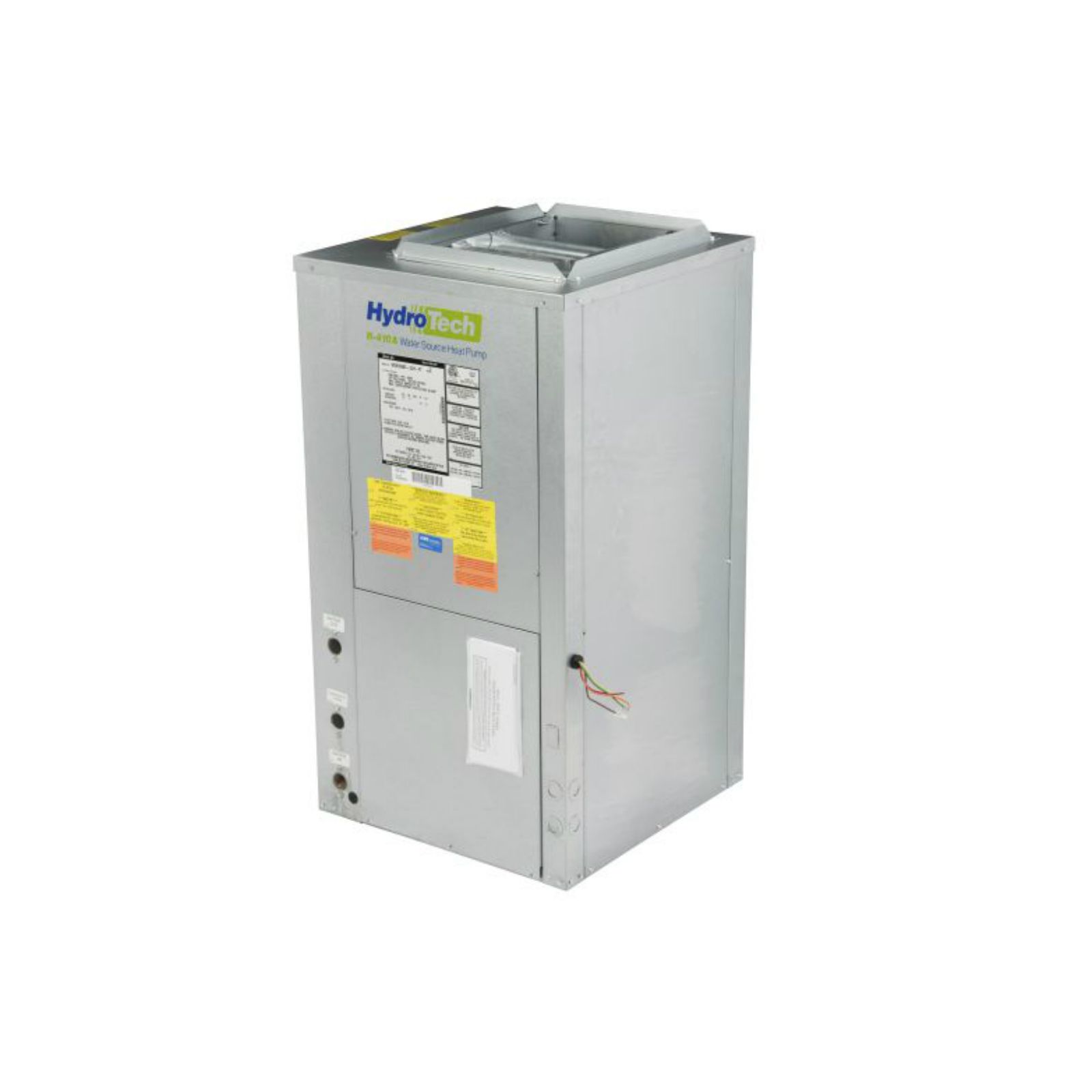

First Co 79KF306VL - WSVXB030N-6LH-F 2 1/2 Ton Vertical Water Source Heat Pump, ECM, Left Hand, Cupronickel, R410A, 208/240V
|
|
|
|
|
|
|
|
|
|
Choose QTY
:
|
|
|
|
|
|
|
|
WSVX Series Water Source Heat Pump
First Co. is pleased to introduce the all new WSVX series HydroTech water source heat pump. Designed by contractors, for contractors, the HydroTech is the most feature-packed product available today.
The HydroTech includes many standard features found only in higher priced products, plus a number of unique features, including:
- 2-speed blower operation in the summer: The HydroTech removes more moisture from the air by operating on a lower speed for up to 10minutes before quietly switching to a higher speed. An even higher speed is also available for high static applications.
- Having the smallest footprint of any product in its class ensures a perfect fit when replacing older models in tight closets (even the 036 model is only 21.5 wide by 21.5 deep!).
- Blower assemblies are field-reversible 180 degrees (except model 040). This option can improve airflow when the units are installed in closets with very little room for supply plenums.
- Optional Vacated Premises Control (VPC) kit with reset feature: Ensures that the unit will operate a minimum of one or two hours per day during extended periods of un-occupancy. This option also includes an automatic reset feature. If a fault occurs, the system will shutdown, but then automatically reset every 24 hours. If the same fault exists each day, the unit will lockout on the fourth day and have to be manually reset.
- Superior insulation: Fully insulated with 3/4" Tuf-Skin RX™, which offers greater sound absorption and better thermal efficiency. The insulation has a special acrylic coating that's formulated with an EPA registered anti-microbial agent.
- Removable discharge flange: Provides additional installation clearance.
- Tool-less filter rack installation: Can be installed after the unit is in the closet, providing additional installation clearance.
- State-of-the-art Digital Control Module
Additional Standard Features
- 100% Factory Tested!
- R410A Refrigerant - All units operate with environmentally friendly R410A refrigerant.
- Non-corrosive Thermoplastic Condensate Pan - Sloped for positive drainage
- High and Low pressure Service Ports
- Refrigerant Filter-drier and Discharge Muffler
- Panel-mounted FPT Water Connections - No back-up wrench needed.
- Removable Panels for Service
- 50 VA Transformer
- 1" Throwaway Filter
Optional Features
- Cupronickel Coaxial Heat Exchanger
- Vacated Premises Control
- E-Coated Air Coil Corrosion Protection
- Compressor Cover: A heavy duty, insulated compressor cover that reduces unwanted compressor noise (must be field installed on the WSVX unit before the unit is installed in the closet).
- Part No. K3821332 (fits WSVX18-42)
- Part No. K4251 (fits WSVX48/60)
- Evaporator Temperature Sensor
Untitled Document
| Name |
First Co 79KF306VL - WSVXB030N-6LH-F 2 1/2 Ton Vertical Water Source Heat Pump, ECM, Left Hand, Cupronickel, R410A, 208/240V |
| Item Number |
WSVXB030N-6LH-FT |
| Manufacturer Product Number |
79KF306VL |
| SKU - PIM Number |
1728419005733622 |
| ERP Number |
387450 |
| Unit of Measure |
EA |
| Weight |
230.0 Pounds (Lb) |
| Length |
21.5 Inches (In) |
| Width |
21.5 Inches (In) |
| Height |
39.3 Inches (In) |
| Country of Origin |
USA |
| Brand |
First Company |
| Equipment Type |
Hydronic |
| Tonnage |
2.5 |
| Stage |
Single |
| EER |
14 |
| Refrigerant |
R-410a |
| CFM |
720-1050 |
| Cooling Capacity |
28250 |
| Heating Capacity |
33120 |
| Air Flow |
Vertical |
| Voltage |
208 VAC |
| Phase |
Single |
| Cycle/Hertz |
60 |
| Blower Motor HP |
1/2 HP |
| Color |
Silver |
| COP |
4.4 |
| Warranty Offered |
Yes |
| UL Listed |
Yes |
| Product Family |
79KF |
Quality HVAC Products
Leader, Innovator, and Trusted Supplier
Since our founding in 1966 to provide the rapidly growing HVAC industry with an independent source of fan coils, First Co. has earned an enviable reputation as a leader, innovator, and trusted supplier of a broad range of quality HVAC products.
Manufacturing:
Our company's production facilities are located in Dallas, Texas where we have steadily grown to present size of more than 400,000 square feet. The expansive complex boasts both the most up-to-date manufacturing equipment available and a stable, experienced, highly skilled workforce.
Manufacturing capabilities range from the ability to produce short runs of specialized products built to customer specifications, to the kind of high volume production capacity required in manufacturing the standard two to twenty ton units that comprise the First Co. line of commercial and residential air handlers.
Engineering:
Engineered systems produced by First Co. are characterized by a commitment to quality and performance that sets a standard of excellence few companies can match.
Visitors to the First Co. Engineering Department will find a seasoned team of professional engineers and support personnel along with a full complement of the latest computerized development systems and test equipment including state-of-the-art indoor and outdoor environmental test chambers, and a sophisticated wind tunnel.
FIRST CO LIMITED WARRANTY FIRST CO products are warranted to be free from defects in material and workmanship under normal use and maintenance for a period of one year from the date of original installation or 18 months from the date of manufacture. Compressors are warranted for 5 years. A new or rebuilt part to replace any defective part that fails within the warranty period will be provided if the defective part is returned to the factory. The replacement part assumes the unused portion of the warranty.
This warranty does not include labor or other costs incurred for diagnosing, repairing, removing, installing, shipping, servicing or handling of either defective parts or replacement parts.
This warranty does not cover and First Co will not be responsible for:
1. Normal maintenance. 2. Shipping or handling damage. 3. Damage or repairs required as a consequence of faulty installation or misapplication of the product. 4. Failure of the product to operate due to voltage being more than plus or minus 5% of rated voltage, blown fuses, open circuit breakers, or other damages due to the inadequacy or interruption of electrical service. 5. Damage or repairs needed as a consequence of any misapplication, abuse, improper servicing, unauthorized alteration, or improper operation. 6. Damage as a result of floods, water damage, winds, fires, lightning, accidents, corrosive atmosphere, destructive environmental conditions, or other conditions beyond the control of First Co. 7. Operation of equipment outside the parameters described in the product bulletin. 8. Any special, indirect, consequential, property, or commercial damage of any nature whatsoever. Damage or destruction of the product by outside sources.
INTERNET SALES POLICY First Co warranty for all residential and commercial products are not available if sold through the Internet by an unauthorized First Co wholesale distributor. This condition applies to consumers purchasing products on the Internet, then self-installing (DIY) or not hiring the original contractor the distributor sold the original equipment to. The reasons are fairly obvious for the warranty policy….HVAC equipment is sensitive and its performance is highly dependent on the skill of the installer.
WARNING TO INSTALLER, SERVICE PERSONNEL, AND OWNER Altering a First Co. product or replacing parts with non-authorized factory parts voids all warranty or implied warranty and may result in adverse operational performance and / or a possible hazardous safety condition to service personnel and occupants. First Co. employees and / or representatives are not authorized to waive this warning.
Limitations of Warranty – This warranty is exclusive and in lieu of all other warranties express or implied. The remedies provided for in this warranty are exclusive and shall constitute the only liabilities on the part of First Co.
For Service or Repair you should contact the installer of the equipment or a licensed HVAC service company. If one is not available you should contact the nearest distributor for a recommended HVAC service company.
|
