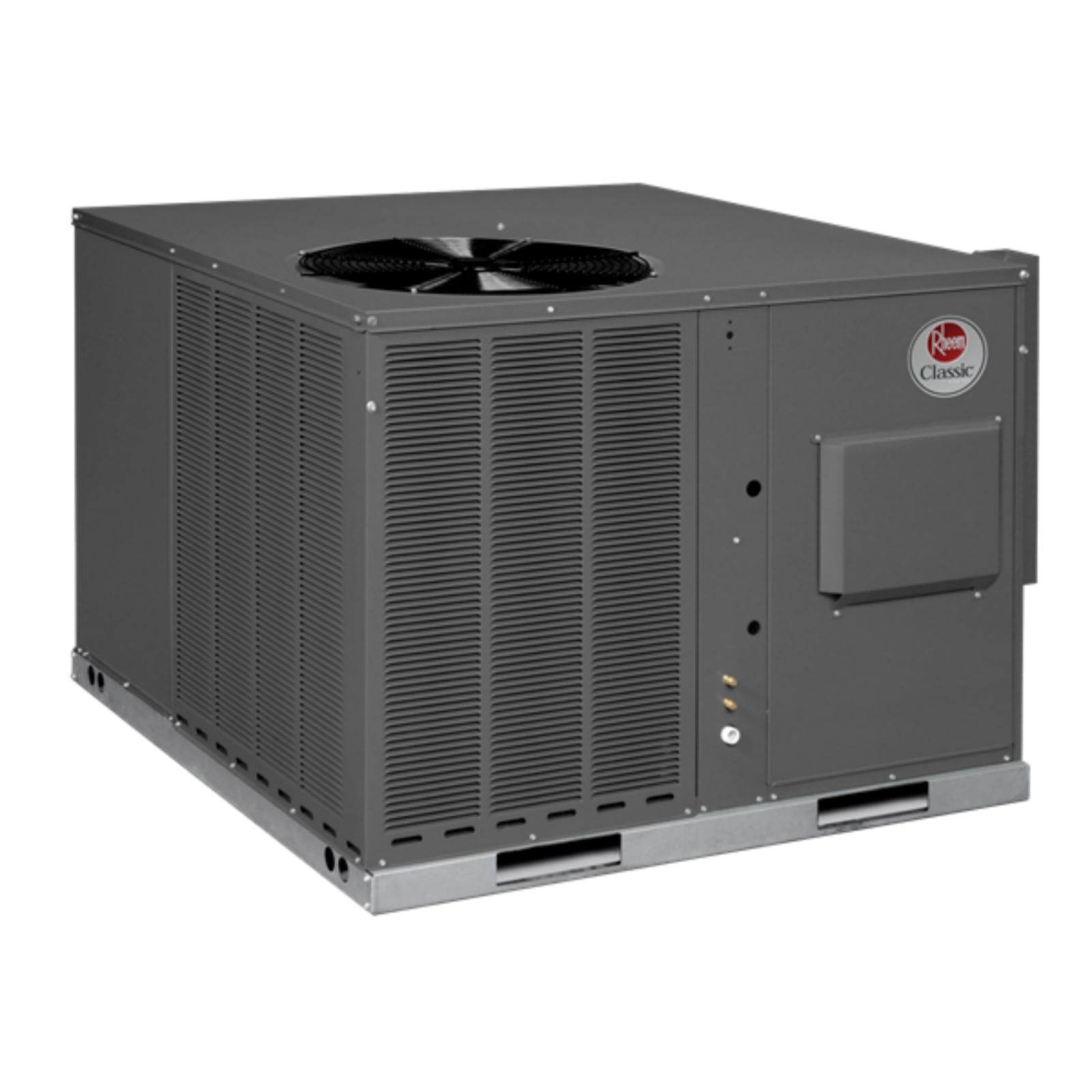

Rheem Classic® Series feature Scroll compressors for maximum efficiency and quiet operation.

Features

• Louvered condenser compartment for protecting the coil against yard hazards and/or weather extremes.
• One-piece top with a deep flange to help keep water out of the unit.
• Supply and return air openings feature a one-inch tall flange to prevent water migration into the ductwork.
• Access panels have "weep holes" and channels to further help manage water run-off.
• Side and down discharge options available on all models. All models are shipped ready for horizontal application.
• Easily accessible blower section complete with slide-out blower.
• Refrigerant connections are conveniently located for easy service diagnostics.
• Micro Channel evaporator and condenser delivers superior performance with less refrigerant charge and less weight than conventional copper tube/aluminum fin coils. In addition the all aluminum construction has superior protection against formicary corrosion and aluminum tube rubbing potential. Its easier to clean and has a more robust surface.
• Inside the easily accessible furnace compartment is the draft inducer motor. This motor is specially designed for quiet reliable operation. In addition to the draft inducer motor, the in-shot gas burners and manifold efficiently regulate the flow of gas for combustion. These new gas/electric units also feature direct-spark ignition and remote flame sensors for added reliability and efficiency.
• All units feature an internal trap on the condensate line eliminating the need for installing an on-site external trap.
• Easily accessible control box.
• Single point wiring simplifies installation.
• Our gas/electric package units feature a tubular heat exchanger design. Tubular heat exchangers are more efficient and durable than older-style clamshell heat exchangers. The heat exchanger is backed by a 10 year limited warranty. Models with a stainless steel heat exchanger installed in a residential application are backed by a limited lifetime warranty.
• Thermal expansion valve standard on all models for superior superheat control, reliability, and energy efficiency at all operating conditions.
• Filter drier standard on all models (not shown).
• Rugged base rail included for improved installation and handling
• Complete factory charged, wired and run tested.Molded compressor plugs.
• A double sloped evaporator coil drain pan assures all water is removed from the unit to improve indoor air quality.

General Terms Of Limited Warranty*
Rheem will furnish a replacement for any part of this product which fails in normal use and service within the applicable periods stated, in accordance with the terms of the limited warranty.

• Heat Exchanger -Factory Standard: Ten (10) Years, Stainless Steel/1-Phase & 3-Phase Models Commercial Application: Twenty (20) Years, Stainless Steel/1-Phase Models Residential Application: Limited Lifetime
• Conditional Parts (Registration Required) - 1 Phase, Residential Applications: Ten (10) Years
• Compressor - 1 Phase, Residential applications: Ten (10) Years, 1 & 3 Phase, Commercial Applications: Five (5) Years
• Parts - Commercial Applications: One (1) Year

*For complete details of the Limited and Conditional Warranties, including applicable terms and conditions, contact your local contractor or the Manufacturer for a copy of the product warranty certificate.
