Brand : Rheem Central Systems
hvac prices
Product Name : Rheem (AHRI 8955218) 5 Ton, 20 SEER, Prestige Series, RA2060/R802VA/RCF6024MEA Multi-Position Furnace Split System

Item# :
RA2060/R802VA/RCF6024MEA
Your Price :
Choose QTY :
heat pump splits

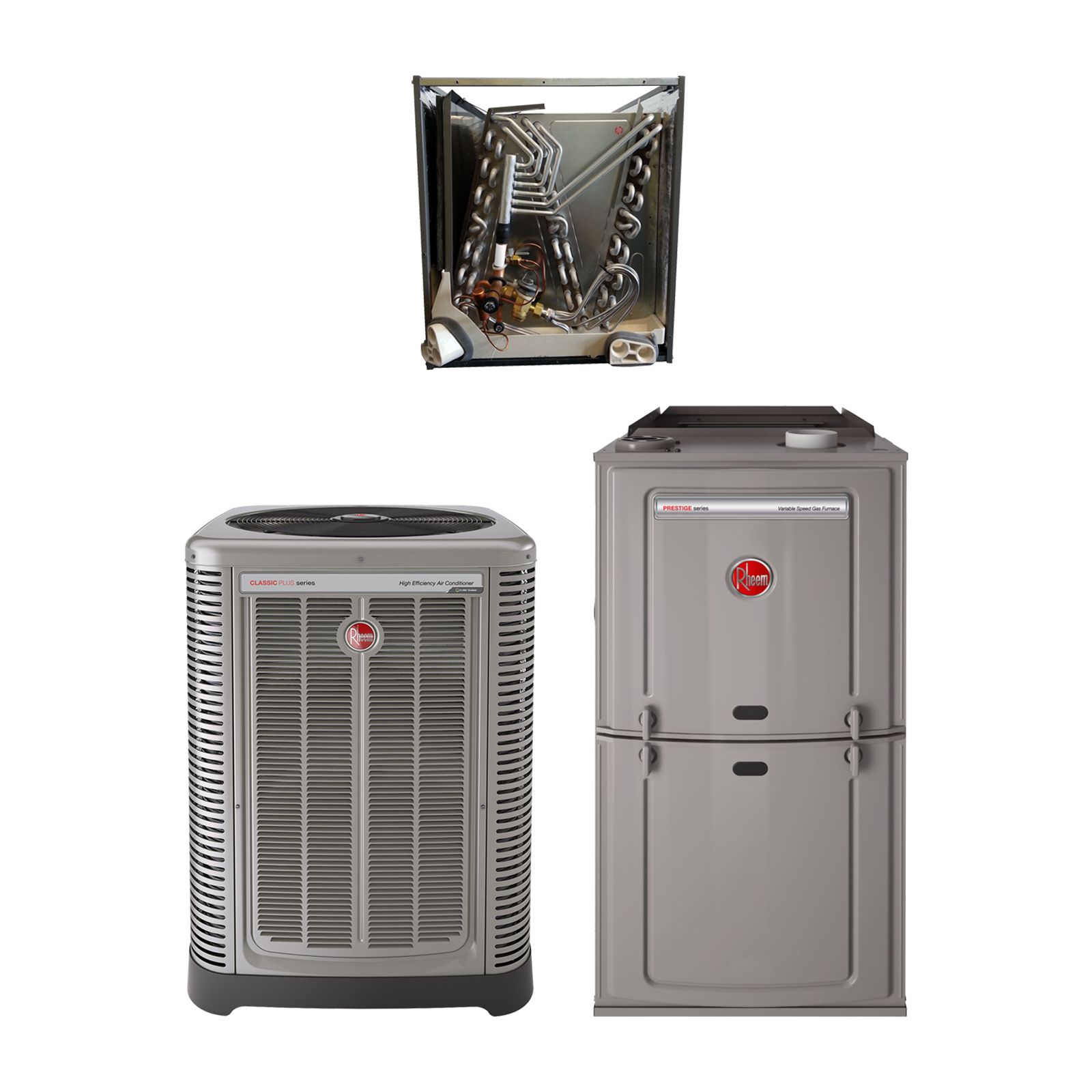

System includes

One RA2060AJVCB Rheem - Prestige Series 5 Ton 20 Seer Variable Speed Econet Condensing Unit 208/230 Volt Single Phase 60 Hz

  • PlusOne™ Energy Efficiency offers minimum of 20 SEER and 13 EER system performance across all capacities.
  • PlusOne™ Expanded Valve Space - 3"- 4"- 5" service valve space -provides a minimum working area of 27 square inches for easier access
  • PlusOne™ Triple Service Access - 15" wide, industry leading corner service access - makes repairs easier and faster. The two fastener removable corner allows optimal access to internal unit components. Individual louver panels come out once fastener is removed, for faster coil cleaning and easier cabinet reassembly
  • EcoNet™ Enabled product. The EcoNet Smart Home System provides advanced air and water control for maximum energy savings and ideal comfort.
  • New composite base pan dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed
  • Powder coat paint system for a long lasting professional finish
  • The Copeland Scroll™ Variable Speed Compressor has a modulating technology which provides more precise temperature control, lower humidity and greater efficiency. The overdrive feature provides cooling load up to 107°F.
  • Modern cabinet aesthetics provides increased curb appeal with visually appealing design
  • Curved louver panels provide ultimate coil protection, enhance cabinet strength and increased cabinet rigidity
  • Optimized fan orifice optimizes airflow and reduces unit sound
  • Rust resistant screws have been confirmed through 1500 hour salt spray testing
  • Diagnostic service window with two-fastener opening provides access to the high and low pressure.
  • External gauge port access allows easy connection of "low-loss" gauge ports
  • Single-row condenser coil (up thru 4 tons) - makes unit lighter and allows thorough coil cleaning to maintain "out of the box" performance
  • 35% fewer cabinet fasteners and fastener-free base - allow for faster access to internal components and hassle-free panel removal
  • Service trays - hold fasteners or caps during service calls
  • QR code - provides technical information on demand for faster service calls
  • Fan motor harness with extra long wires allows unit top to be removed without disconnecting fan wire.
  • High and low pressure standard on all models.

And

One R802VA100521MSA Rheem - Prestige 80% Gas Furnace Two Stage Variable Speed, 100K BTU, ECM Motor, 3 1/2 to 5 Ton

Rheem Prestige™ Series Communicating Two-Stage Variable Speed Upflow/Horizontal Gas Furnace (R802V- Upflow/Horizontal Series)

Model Features
  • 80% residential Gas Furnace CSA certified
  • Two stages of operation to save energy and maintain optimal comfort level.
  • Variable speed blower motor technology provides ultimate humidity control quieter sound levels and year round energy savings
  • EcoNet enabled HVAC product
  • 3 way multi poise design Upflow / Horizontal
  • PlusOne™ Diagnostics - 7 Segment LED all units
  • PlusOne™ Ignition System - DSI for reliability and longevity
  • Heat exchanger is removable for improved serviceability. Aluminized steel construction provides maximum corrosion resistance and thermal fatigue reliability.
  • Solid doors provide quiet operation
  • Solid bottom
  • Insulated blower compartment
  • Low profile 34" cabinet ideal for space constrained installations
  • Blower shelf design - serviceable in all furnace orientations
  • Hemmed edges on cabinets and doors
  • 1/4 turn door knobs for tool less access
  • Integrated Control board features dip switches for easy system set up
  • QR code for quick access to product information from your smart phone or tablet
  • Compatible with single or two stage thermostats. For optimal performance a two stage thermostat is recommended

And
One RCF6024MEAMCA Rheem - 5 Ton Cased 24" Coil, R410A, EEV Model, Multipoise, Medium Efficiency

5 Ton Cased 24" Coil, R410A, EEV Model, Multipoise, Medium Efficiency

RCF Series featuring Industry Standard R410a Refrigerant, Airflow Capacity 600 - 1,900 CFM

Rheem® Indoor Furnace cased coils and replacement uncased coils are designed for use with Rheem outdoor units and are available for vertical upflow or downflow, and horizontal left or horizontal right airflow. When matched with Rheem outdoor units, the coils provide a nominal capacity range from 18,000 BTU/HR [5.24 kW] to 60,000 BTU/HR [17.6 kW].
  • Constructed of aluminum fins bonded to internally grooved aluminum tubing.
  • Coils are tested at the factory with an extensive refrigerant leak check.
  • Coils have copper sweat refrigerant connections.
  • Feature two sets of 3/4" [14.1 mm] N.P.T. Condensate drain connections for ease of connection.
  • Chatleff metering device connections, at inlet and outlet of TXV or EEV and equalizer connections (TXV only).
  • Approved for system application with variety of Rheem outdoor units.
  • Condensate drain pan is constructed of high grade, heat resistant, corrosion free thermal-set material.
  • Compatible with Germicidal Light System (UV resistant)
  • Bi-Directional airflow eliminates the need to switch any internal components from horizontal left to right.
  • Unique drain pan design maximizes application flexibility and condensate removal.
  • N-Coil design maximizes performance and minimizes height required at installation.
  • Coils are AHRI certified for system application with a variety of Rheem outdoor units.

NameRheem (AHRI 8955218) 5 Ton, 20 SEER, Prestige Series, RA2060/R802VA/RCF6024MEA Multi-Position Furnace Split System
SKU - PIM Number1461832340061
Item IDSYSRHE1624
Air FlowMulti-Position
Voltage208-230 VAC
Voltage
SEER20
SEER
EER12.5
EER
Equipment TypeFurnace
Product FamilyRA20
Cooling Capacity56500
Product TypeFurnace Split System
AHRI Number8955218
Tonnage5
TierPrestige




NameRheem RA2060AJVCB - Prestige Series 5 Ton 20 Seer Variable Speed EcoNet™ Condensing Unit 208/230 Volt Single Phase 60 Hz
BrandRheem
Product SKURA2060AJVCB
Manufacturer Product NumberRA2060AJVCB
SKU - PIM Number1405358021530
Item ID362780
Unit of MeasureEA
Weight316.0 Pounds (Lb)
Length35.8 Inches (In)
Width35.8 Inches (In)
Height51.0 Inches (In)
Country of OriginMEX
TierPrestige
Equipment TypeStraight Cool
StageInverter
SEER20
EER13
RefrigerantR-410a
CFM6175
Cooling Capacity57000
Voltage208-230 VAC
Full Load Amps5.3
PhaseSingle
Cycle/Hertz60
Minimum Circuit Amps48
Maximum Fuse Size80
Condenser Motor HP1/2 HP
Condenser Motor SpeedsVariable
Rated Load Amps34.1
Locked Rotor Amps50
Suction Line FittingSweat
Suction Line Size7/8"
Liquid Line FittingSweat
Liquid Line Size3/8"
CertificationsAHRI Standard 210/240
CertificationsABS Quality Evaluations, Inc. Management System Certification
CertificationsRvA Accredited
CertificationsANAB Accredited
ColorGray
Compressor(1) Scroll
InverterYes
Number of Fan Blades1
Sound Level (dBA)70"-76|30-02-01-02-00 1405358021530|Warranty Offered|"Yes
Energy Star RatedYes
UL ListedYes
UL RecognizedNo
Fins per Inch20
Tonnage5
Product FamilyRA20

==============================================


NameRheem R802VA100521MSA - Prestige 80% Gas Furnace Two Stage Variable Speed, 100K BTU, ECM Motor, 3 1/2 to 5 Ton
BrandRheem
Product SKUR802VA100521MSA
Manufacturer Product NumberR802VA100521MSA
SKU - PIM Number1403974088982
Item ID348550
Unit of MeasureEA
Weight140.0 Pounds (Lb)
Length29.6 Inches (In)
Width21.0 Inches (In)
Height34.8 Inches (In)
Country of OriginMEX
TierPrestige
Equipment TypeFurnace
StageTwo
AFUE80%
BTU Input100000
BTU Output81000
Voltage115 VAC
Full Load Amps9.6
PhaseSingle
Cycle/Hertz60
Minimum Circuit Amps12
Blower Motor HP3/4 HP
Filter Size19 1/4" x 25"
Ignition TypeDirect Spark
Motor TypeECM
CertificationsAHRI Certified, RvA Accredited, ABS Quality Evaluation Inc. Management System Certified, ANAB Certified, CSA Certified
ColorGray
Fuel TypeNatural Gas or LP
Gas Connection1/2" [12.7 mm] N.P.T.
Warranty OfferedYes
Energy Star RatedNo
UL ListedNo
Tonnage3 1/2
Product FamilyR802VA
