Brand : Klimaire Ductless Mini Split
hvac prices
Product Name : KSIA009-H216 9000btu/h Klimaire 16 SEER

Item# :
KSIA009H216
Reg Price :
$1,600.05
Your Price :
$928.39
Accessories :
Whats This? 16 ft Install Kit with Wires
Total Price :
$1,024.39
Choose QTY :

heat pump splits

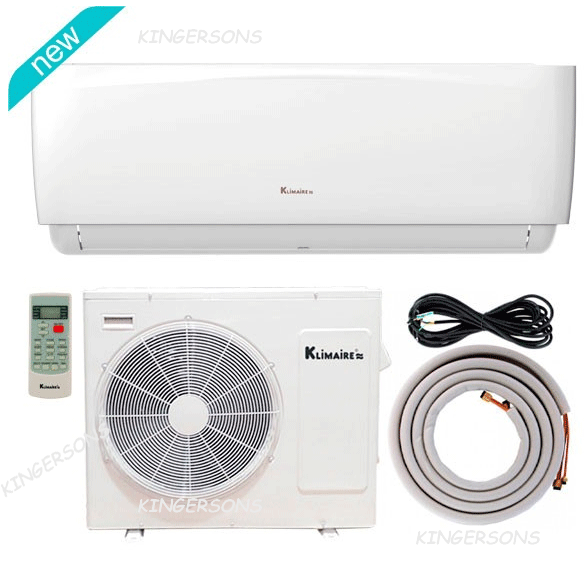

Klimaire KSIA009-H216-S ductless mini-split heat pump 9000 Btu is a true zone control system .Installs fast and easy. They come with pre-flared installation kits, pre-charged outdoor units and pre-vacuumed indoor units. This unit is integrated  with DC Inverter technology enables variable compressor speed, reducing the power usage to the minimum while keeping the indoor temperature steady and constantly controls the dehumidification process for better indoor air Quality and comfort. The Sleek and attractive wall mounted indoor unit is whisper quite and comes with a fully-function remote control and wall bracket for easy installation.

* Sleep Mode-Helps to maintain the most comfortable temperature for a deep sleep and save more energy.

* Self-diagnosis – Micro processor in the main electronic board performs a self-diagnostics and displays error codes to make maintenance simple.

* Auto swing louver – The auto swing Louver function ensures that the air direction corresponds to the mode selected.

* Auto-restart - After a power interruption when the power returns the unit will restart automatically at the previous function settings.

* Anti-cold draft - If when the ambient temperature is low the unit is turn on in heat mode it will warm up prior to starting the fan operation to prevent a cold air blast to make people feel more comfortable.

* Quick-Hook Design – The Indoor unit can be hung easier and faster on the mounting plate reducing installation time and easing service.

* Convenient for installation – Multi-refrigerant outlet pipe method: left/right/rear, more flexible for installation.

* Auto swing louver – The auto swing Louver function ensures that the air direction corresponds to the mode selected.

=======================



BrandKlimaire
Model NumberKSIA009-H216-S
Cooling Capacity (Btu/h)9000
Heang Capacity (Btu/h)10000
Dehumidification (Pint/hr)1.69
SEER16.4
HSPF (Heating Seasonal Performance Factor)8.4
Installation TypeWall Mount
IAQ (Indoor Air Quality)Self cleaning
Power Supply208-230 V, 1 Phase, 60 Hz
============================
Klinaire Model Number KSIA009-H216

Kingersons
Power Supply - V / ph /Hz
208-230 / 1 / 60
CoolingcapacityBtu/h
9000
Inverter Capacity RangeBtu/h
3753~13306
Power Inputkw
0.84
Rated CurrentA
3,68
Indoor Air Flow Volumecfm
540
SEER
16.3
EER Kingersons
9.6
HeatingcapacityBtu/h
10000
 Inverter Capacity RangeBtu/h
4435~11942
 Power Inputkw
0.941
 Rated CurrentA
5.34
 HSPF
8.4
 COP
11.26
Minimum Circuit AmpacityA
7.2
Max overload protection breakerA
15
Oehumidificationpint/h
1.69
CompressorType
Rotary
Power InputW
735
Rated current (RLA)A
5.25
Locked Rotor Amp (LRA)A
20
OutDoor Fan MotorPower InputW
36
RLAA
0.31
Speed (Hi/Mi/Lo)RPM
770/550/500
Outdoor Air Flowcfm
1089
Outdoor Noise Leveldb(A)
50
indoor fan motorpower inputW
41
RLAA
0.21
Speed (Hi/Mi/Lo)rpm
1130/1000/850
indoor fan flow cfm
540
indoor noise level (L-M-H) db(A)
30-32-37
max refrigeation plpe length ft
49.2
max elevation differenceBuy Kingersonsft
16.4
refrigerant type
R-410A
refrigerant charge (up to 25ft line set) oz
27.51
Refrigerant pipe sizeLiquidin
1-4
Gasin
3-8
drain hose connection ODin
1-2
design pressurepsing
550 / 340
connection methodtype
Flare
connection wirlingAWG
4*18 AWG
operation temperatureIndoor (cooling/Heating)0f
60.8-89.6/60.8-89.6
Outdoor (cooling/Heating)0f
50-125.6/5-104
indoor unitUnit Dimensions (W x H x D)in
29.5 x 11.2 x 7.9
Packing Dimensions (W x H x D)in
32.3 x 13.6 x 11
Net /  Gross WeightIb
17.6 / 22
outdoor unitUnit Dimensions (W x H x D)in
28.3 x 21.3 x 10.2
Packing Dimensions (W x H x D)in
33.5 x 24.4 x 14.6
Net /  Gross WeightIb
59.5 / 68.3
certifications Buy at KingersonsETL/cETL/ AHRI Performance Certified 210/240
application areasq.ft.
350-400




Continued product improvement is our goal at klimair product inc. Hence, specifications and data listed herein are subject to change without notice and without obligation on our part.
Allways comply with local, state, and national electrical codes. Buy From KINGERSONS.COM
1 - Minimum 10 f line set recommended.
2 - Outdoor unit being elevaled then the indoor unit oil trap should be installed every 17 ft to 23 ft (5 to 7 m)





Ductless mini split units require professional installation to make sure that all of the systems will be installed, according to applicable local and state laws and building codes, by a PROFESSIONAL, CERTIFIED AIR CONDITIONING CONTRACTOR who has all proper licenses and insurance as mandated by the local municipalities, states and provinces laws and codes. ALL WARRANTIES FOR KLIMAIRE DUCTLESS MINI SPLIT UNITS WILL BE VOIDED IF THE SYSTEMS ARE NOT INSTALLED BY THE MENTIONED QUALIFIED CONTRACTORS. KLIMAIRE PRODUCTS, INC. ("KLIMAIRE") warrants to the original purchaser its ductless mini split air conditioners and heat pumps against defects in materials and/or workmanship under normal use and maintenance during the Warranty Period. The warranty period commences from the date of original purchase/shipment from Klimaire. Klimaire will at its option repair or replace free of charge any functional part(s) that fail(s) due to defects in materials or workmanship. The replacement part(s) can be a new or remanufactured part(s) provided at KLIMAIRE sole discretion, and these parts are warranted for the remainder of the original warranty period, while the unit remains at the original installation site. This warranty is not assignable or transferable to any subsequent purchaser or user.

STANDARD FIRST YEAR COVERAGE (BASE WARRANTY) — Klimaire will repair or replace free of charge any defective part(s) that fail(s) under normal use that proves to be defective due to materials or workmanship during the first year of original purchase. Parts covered are factory installed: unit fan motors, unit blower wheels or fans, unit thermistors, circuit boards, transformers and relays, unit heaters, reversing valve solenoid, and unit capacitors. All defective part(s) shall be returned to Klimaire in exchange for the replacement part(s), and it becomes property of Klimaire.

STANDARD SECOND THRU FIFTH YEAR COMPRESSOR COVERAGE (RESIDENTIAL) — The unit installed in a residence must be owner occupied and single family dwelling. KLIMAIRE will replace free of charge any defective compressor that fails under normal use which proves to be defective due to materials or workmanship from the second to the fifth year from the date of original purchase. Any defective compressor shall be returned to Klimaire in exchange for the replacement one, and becomes property of Klimaire.

STANDARD SECOND THRU THIRD YEAR COMPRESSOR COVERAGE (COMMERCIAL) — For all commercial applications including apartments and rental properties, KLIMAIRE will replace free of charge any defective compressor that fails under normal use which proves to be defective due to materials or workmanship from the second to the third year from the date of original purchase. Any defective compressor shall be return to Klimaire in exchange for the replacement one, and becomes property of Klimaire.

OPTIONAL EXTENDED LIMITED WARRANTY – An optional extended warranty may be available directly from Klimaire. Please check for availability and coverage for your state.

PRODUCT REGISTRATION In order to be eligible for coverage under this warranty you must register your product within (60) days from the date of original purchase/shipment from Klimaire. If registration is not completed within (60) days, the warranty period reverts to the BASE WARRANTY. The return of the owner registration card is not a condition of the warranty coverage. However, please detach and return it so that we can contact you should a question of safety arises which could affect you. LIMITED WARRANTY EXCLUSIONS & LIMITATIONS – This warranty excludes and does not apply to labor, freight or any other costs associated with servicing, repairing, removing, installing, troubleshooting, travel time to and from the job site, complying with local building and electrical codes, shipping and handling of either defective, or replacements parts, or complete unit, for items that are to be maintained or replaced by the owner, any refrigerant charges, disposal or recovery of refrigerants, damages or repairs required as a result of the use of used and/or recycled refrigerant. Such costs may be covered by a separate warranty provided by the installer. Klimaire reserves the right to change or modify its warranty at any time. This limited warranty also excludes (a) service calls when there are no defects in the system covered under this warranty; (b) system installa


SHIPPING DETAILS

Mostly All Of Our Products Are Shipped Same Or Next Day

Your product will be mostly shipped using Freight Company such as SAIA, ESTES, Old Dominion, FEDEX or UPS and will be delivered in 1-5 business days depending upon your geographical location from our warehouses. We ship products from warehouses in NY, NJ, FL, CA,AZ, TX And MO. Mostly if you are close to our warehouses, you should receive the Product in 1-3 business days. We will email you your tracking number soon as its shipped out or you can log into your account on our website by using your email address and password you created at the time of placing order to check all the shipment and product details.
Please remember we only ship to 48 states within United States. Due to expensive shipment fee we do not ship to Hawaii & Alaska. We do not ship to Canada, Puerto Rico, Jamaica and other countries due to custom issues.

Though above shipment and delivery process is what we normally practice, under unforseen circumstances they cannot be guaranteed at all times. But we do our best and mostly succeed to ship the product either same or the next day.

Overnight Shipping Details (if required)

We can ship overnight or by Second Day Air. But beacuse these are air conditioners and the package weighs more than 90 pounds usually, shipping overnight can result in the package being mishandled and delivered damaged. Plus it cost anywhere from $180-$850 more than regular shipping depending upon your location from our warehouse. Feel free to email us with such enquiries.

Delivery Acceptance, Returns, Exchanges and Cancellation Policy.

We truly appreciate your business and for the past 2 decades being in this business we have continued to do our best to earn customer trust with each transaction. We want you to be happy with your purchase.

100% Satisfaction is guaranteed with all your purchases. In case any of the RARE complications occur, we will handle them upto your best interest and satisfaction.

Delivery Acceptance Terms:
If you receive a package that seems damaged or dented, please open the package in front of the driver and after inspection if you see the product has a severe damage you can refuse the package and call us immediately. We will then arrange a new shipment (Free Replacement) ASAP.

Please note: If the box looks visibly damaged, the product inside may still be in perfect condition as they are well padded for shipping purposes.

PLEASE DO NOT SIGN OR REFUSE THE PACKAGE WITHOUT INSPECTING THE CONDITION OF THE PRODUCT INSIDE. Please take pictures if needed, accept or refuse shipment based upon the condition of the product in the box, not based upon the condition of the box. Please remember if you signed off on a delivery document, insurance cannot be filed if cosmetic damage is found at a later date, as it is considered to have happened after delivery at jobsite.

If you need to get in touch with KINGERSONS, please call KINGERSONS customer service number at 1-386-951-1722 OR email us with your query. AS PER OUR WEBSITE, BELOW IS OUR EXCHANGE/RETURN POLICY FOR YOUR REFERENCE.


DEFECTIVE EXCHANGE
If unit (any product) is defective, depending upon the brand you buy, it will be taken care of by manufacturer warranty. Usually they will send out the replacement part within 24 hours, if replacing part is not a solution, they would probably replace the whole unit if the product was found defective. Replacement will only be made with the same model, if customer decides to upgrade or downgrade to a different model, we'll treat it as a return and a new order.

* All returns should be in original packaging and in brand new condition. Installed products are not considered brand new and cannot be returned.

* All damaged returns and replacements must be requested within 24 hours after the receipt of the product. *

Before shipping the product back, you should request an RA# (Return Authorization number), without an RA# your package will not be accepted, will be refused and sent back by the warehouse.


RETURNS
For all returns, customer is responsible to ship product back to our warehouse at their own expense; restocking fee of 19% will apply regardless if defective and original shipping fee (from $69 to $189 depending upon the product you purchased) will not be refunded as it is paid to the trucking company's and they are non-refundable.

CANCELLATIONS
If you placed the order and you wanted to cancel the order BEFORE IT IS SHIPPED, we will gladly cancel your order and $15.99 cancellation fee will be charged and 3% credit card processing charges will not be refunded. Please make sure that you call us within few hours after the order is placed. We ship the items out same or next business day. We cannot process cancellations after the product is shipped out. It will be considered as a return instead once the product is shipped and you will need to pay the return charges. If the delivery of the shipment is refused above return policy will apply. Once the item is shipped, the shipping company will not refund us the shipping fee back and will charge us for shipping both ways, this will not be refunded if cancelled after the product is shipped and 19% restocking fee will apply.



THANK YOU ONCE AGAIN FOR SHOPPING WITH US!
