Product Name :

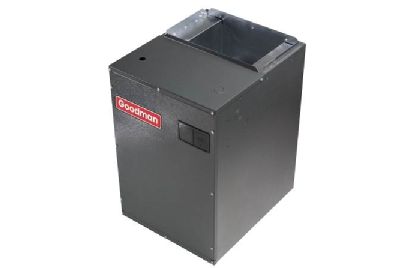

Goodman-MBE1200AA-1-Goodman-15-3-Ton-Variable-Speed-Modular-Blower
|
|
|
|
|
|
|
|
|
|
|
|
Choose QTY
:
|
Required
|
|
|
|
|
|
|
| Air Handler Type | Modular | | CFM @ 0.3" ESP (High/Medium/Low) | 1,200/600 | | Configuration | Multi-Position | | Depth | 21" | | Descriptor | MBVC ECM Field Installed TXV | | Height | 26" | | Max. Fuse Size | 15 | | Min. Circuit Amps | 4.3 | | Motor Type | ECM | | Nom. CFM | 1,200 | | TXV Included | No | | Volts | 208/230 | | Width | 17-1/2" | | Wt. Lbs. | 67 | | Shipping Weight | 64.40 | | Shipping Width | 20.00 | | Shipping Length | 26.25 | | Shipping Height | 29.50 |
- Auto configuration of the airflow and tonnage
- CFM indicator
- Maximum 4 low voltage wires required for operation
- Built-in dehumidify feature
- Diagnostic indicator lights
- Storage of 6 prior fault codes
- Programmable heat strip settings
- Color coded terminal strip for non-communicating setup HKR heat kits sold separately
- 208/230V
- Parts Warranty (Years)10
- Compressor Warranty (Years)10
|
|
|
|
|
|
|
|
|
|
|
