Brand : Goodman Air Conditioners
hvac prices

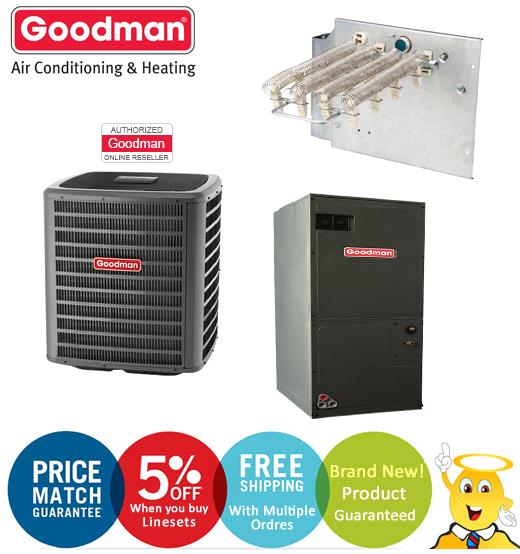

Product Name : 1.5 Ton Goodman SEER 14.5 Air Conditioner GSX140181 ASPT25B14 W/Electric Central Split System

Item# :
GSX140181 ASPT25B14 HKSX05XC
Reg Price :
$4,946.40
Your Price :
$2,720.52
Choose QTY :

heat pump splits

The Goodman GSX14 Air Conditioner uses the chlorine-free refrigerant R-410A and features operating sound levels that are among the lowest in the heating and cooling industry. With its 14 SEER rating, the GSX14 will help reduce energy consumption throughout the life of the system.

Standard Features:

  • Energy-efficient compressor
  • Factory-installed filter drier
  • Copper tube/aluminum fin coil
  • Service valves with sweat connections and easy-access gauge ports
  • Contactor with lug connection
  • Ground lug connection
  • AHRI Certified
  • ETL Listed
Description

Enjoy efficient performance of the Goodman ASPT25B14 2 ton air handler. This model from the ASPT series is specifically designed for heat pump and cooling applications. In order to provide excellent operation, it features internal factory-installed thermal expansion valves. Also, it is equipped with the all-aluminum evaporator coil. This air handler is intended to provide excellent air distribution. It features direct drive, multi-speed EEM motor with ECM-based blower.

The Goodman ASPT25B14 comes with 17 1/2" wide, SmartFrame™ painted cabinet, which ensures safety of the system. Also, for an easy attic access, it has 21" depth. This air handler is intended to provide 24,000 BTU cooling capacity. It offers vertical or horizontal configuration capabilities. For quick repositioning, this unit is equipped with the coil mounting track. In addition, this 2 ton air handler is ETL listed and AHRI certified.

Features

  • Internal factory-installed thermal expansion valves for cooling and heat pump applications
  • Direct drive, multi-speed ECM blower motor
  • All-aluminum evaporator coil
  • Coil mounting track for quick repositioning
  • Optimized for use with R-410A refrigerant
  • Cabinet air leakage less than 2.0% at 1.0 inch H?O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H?O when tested in accordance with ASHRAE standard 193
  • 3 kW – 25 kW electric heater kits
  • AHRI certified; ETL listed
  • Rigid SmartFrame™ cabinet
  • Horizontal or vertical configuration capabilities
  • 21" depth for easier attic access
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Screw-less sides and back helps to reduce condensation when installed in humid locations
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Glue-less cabinet insulation retention
  • Tool-less filter access

Description

The Goodman HKSX05XC is an electric heat kit. It comes from the HKS line, which is intended for use with Goodman air handlers. This model uses rust-resistant nickel chromium heating elements and has 5 kW nominal heating.

This Goodman heat kit features sequences for better temperature control. It has multiple branch circuit capability and has been completely assembled and tested so our customers know they are good to go. Plus, Goodman electronic heat kits are known for being easy to install and a plug-in wiring harness makes it simple to fit into the air handler.

Features

  • Designed for higher airflow requirements
  • Available with or without circuit breakers
  • Ship without the electric heater cover plate installed but the heater cover will be included with the literature packet if needed in no heat applications
  • For Use With: All ARPT, ARUF & AVPTC AH's
Specifications
  • Wt. Lbs.: 9
  • Breaker: No
  • Nom. kW: 5.0
  • Shipping Weight: 3.05
  • Shipping Width: 8.40
  • Shipping Length: 14.70
  • Shipping Height: 9.60
  • Voltage: 208/240V

Description

A specially formulated super-hydrophobic (water repelling) product in a convenient aerosol package for field service. The non-conductive formula has numerous applications in the management of water on non-food, non-potable water surfaces for the HVAC/R trade; surfaces that are not exposed to ongoing abrasion (hand and foot traffic).

  • Slows ice formation on refrigeration coils/cold plates

  • Provides added corrosion resistance to coils

  • Improves corrosion resistance to system components. Examples include circuit boards, filter-driers, flow control valves, equipment covering, etc.

  • Provides added corrosion protection of solder connections on low voltage circuit boards

  • Self-cleaning properties reduce rate of grime on outdoor coils

  • Reduces rate of bacterial growth on non-food, non-potable water surfaces

  • Improves water dispersion in condensate pans

  • Many other applications!


Cooling Capacity 18000 BTU
 Cooling Capacity 1.5 Tons
 SEER 14 SEER
 Energy Efficiency Ratio 12.0 EER
 Refrigerant R-410A
 Maximum Overcurrent Protection (Breaker) 20 Amps
 Compressor Type Scroll
 Low Pressure Safety Switch No
 Liquid Line Connection Size 3/8 Inches
 Suction Line Connection Size 3/4 Inches
 Noise Level 71 Decibels
 Pad Size 30x30 Inches
 Product Weight 131 lbs
 Shipping Weight 146 lbs
 Width 26 Inches
 Depth 26 Inches
 Height 27 1/2 Inches
 Voltage 208 / 230 Volts
 Frequency 60 Hz
 Voltage Phase 1
 Compressor Warranty 10 Years
 Parts Warranty 10 Years
Specification

Configuration Downflow / Horizontal / Upflow
 Blower Cooling Capacity 2 Tons
 Electric Heat Capabilities (Optional) 10 / 5 / 8 Kilowatts
 Refrigerant R-410A
 Blower Type High Efficiency Multi-Speed
 Maximum Overcurrent Protection (Breaker) 15 Amps
 Fuel Type Electricity
 Requires Downflow Kit Yes
 Liquid Line Connection Size 3/8 Inches
 Suction Line Connection Size 3/4 Inches
 Supply Air Opening Size 16.375 x 11.3 Inches
 Return Air Opening Size 19.5 x 14.125 inches
 Shipping Weight 116 lbs
 Width 17 1/2 Inches
 Depth 21 Inches
 Height 45 Inches
 Voltage 208 / 230 / 240 Volts
 Frequency 60 Hz
 Voltage Phase 1
 Parts Warranty 10 Years


Directions

This product must be used in accordance to the following directions by HVACR professionals only.

  1. Disconnect all power to the equipment before use. Do not spray near sparks, heat or open flame. Discontinue the use of power tools during use. Do not smoke while applying product.
  2. Shake well before use. Use outdoors or in a well-ventilated area. Keep area ventilated until fumes are gone. Avoid breathing of fumes during application.
  3. Ensure surface is clean and mostly to fully dry before applying. After a coil cleaning, the surface needs to be blown dry with an inert gas to remove excess moisture from the surface before applying Nu-Shield.
  4. From a distance of 6-12 inches, spray a light coat on the surface, but no more beyond it being visibly wet. In other words, ‘Wet It and Forget It’. Contents in the canister will cover approximately 100 square feet. Depending on ambient conditions, allow a minimum of 20 minutes for Nu-Shield to dry on surface. Ensure surface appears visually dry and fumes are gone from the area before turning on power to equipment.

Note: Product needs to be applied after each coil cleaning. For best results, especially in corrosive environments, the product should be reapplied annually.
