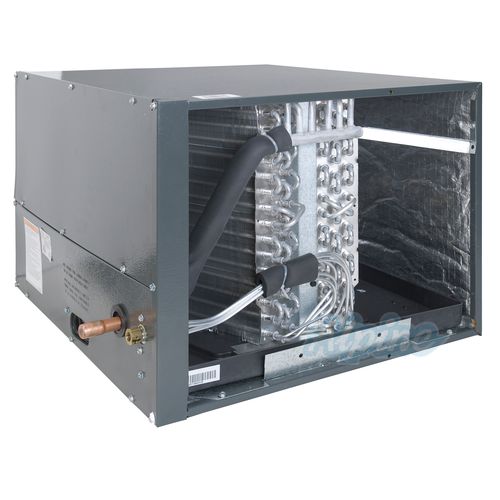

The Goodman® CHPF Cased Horizontal “A” Coils are made for split
system air conditioners and heat pumps. Each case is made of quality
galvanized steel with a painted, leather-grain-embossed finish. The
coil’s cabinet is painted Architectural Gray.
Standard Features
- Suitable for use with R-410A and R-22 refrigerants
- Rust-proof, high-temperature, thermoplastic drain pans feature a low water-retention design
- Available with check flowrater expansion device for heat pump or cooling-only applications
- Rifled tubing and corrugated aluminum fin coils
- Foil-faced insulation
Cabinet Features
- High-quality post-paint cabinet
- Split-seam front for easy access
| Configuration
|
Horizontal
|
|
Cooling Capacity
|
5
Tons
|
|
Refrigerant
|
R-22
/
R-410A
|
|
Number of Rows
|
4
|
|
Liquid Line Connection Size
|
3/8
Inches
|
|
Suction Line Connection Size
|
7/8
Inches
|
|
Orifice Size
|
0.093
inches
|
|
Coil Width
|
21 1/8
inches
|
|
Coil Height
|
24 1/2
inches
|
|
Coil Depth
|
26
inches
|
|
Plenum Opening Width
|
19
inches
|
|
Plenum Opening Height
|
23.5
inches
|
|
Shipping Weight
|
77
lbs
|
